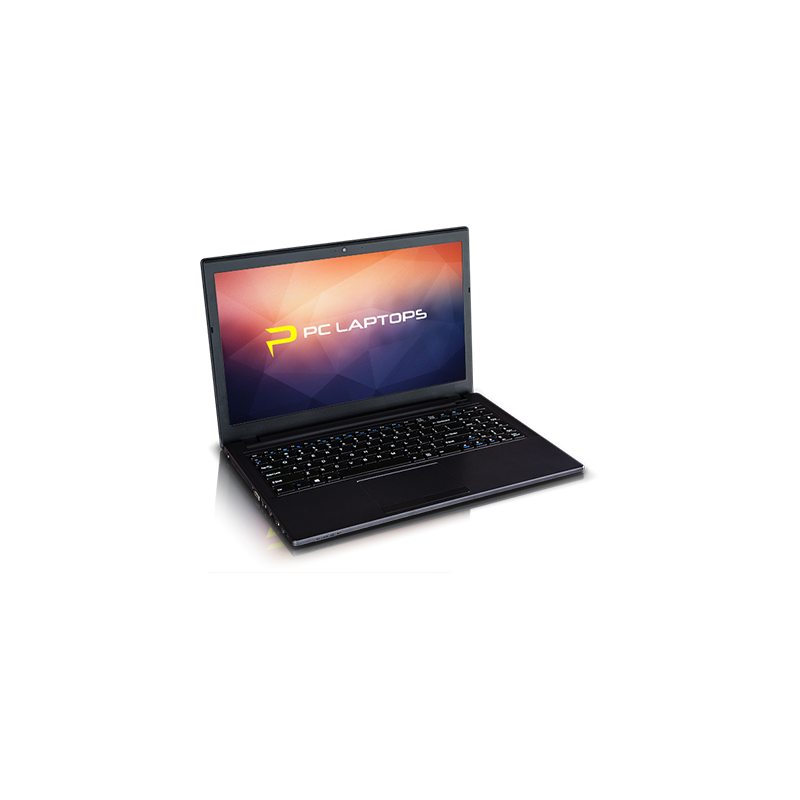

PCL SM3 14" U5 225H LAPTOP
Processor
Intel Core Ultra 5-225H Processor (1.7 GHz, up to 4.9 GHz Turbo Boost), 14 cores / 14 thread, 18MB Cache, TDP: 28W
Memory
Supports Dual Channel DDR5
Two 262 Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor and memory module)
Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module.
Display
14” FHD+ (1920x1200) Wide View Angle, Matte Finished
Graphics
Processor
Intel ARC Graphics (based on system with dual DDR5 and total memory capacity above 16GB)
- Intel Arc 130T GPU (Intel Core Ultra 5-225H)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX® 12 compatible
Intel Xe Graphics (based on system with single DDR5, or total memory capacity not reach 16GB)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX 12 compatible
Storage
Two M.2 2280 SSD, PCIe Gen 4x4 interface
Audio System
High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Pointing Device
Integrated Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard
Multi languages, White Color illuminated A4 size isolated keyboard
I/O Ports
1 HDMI output Port (with HDCP)
1 Thunderbolt 4 combo port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port (Type-A) (1x Powered USB port, AC/DC)
1 USB 3.2 Gen 1 Port (Type-A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader
Micro SD Push-Push Card reader
Slots
Three M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
Communication
Built-in Gigabit Ethernet LAN
Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
Power System
Embedded Polymer Smart Lithium-Ion battery pack 73WH
Full-Range AC-in 100~240V, 50~60Hz, 90W AC Adapter, DC output 19V, 4.74A
OS Support
Windows 11 (64-bit)
Certificates
Windows 11 (64-bit) Logo
HDMI Logo
Weight and Dimensions
3.22 LBs including 73WH Battery Pack
12.48" (w) x 9.25" (d) x 0.71" (h)
Other Features
Metal top and bottom case
Built-in 1.0M HD Video Camera
FlexiCharger
MIL-STD 810H
Specifications are subject to change without notice

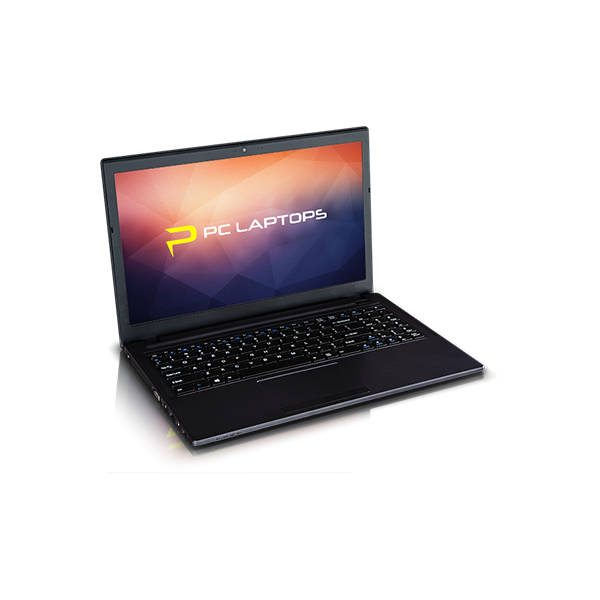

PCL SM3 16" U5 225H LAPTOP
Processor
Intel Core Ultra 5-225H Processor (1.7 GHz, up to 4.9 GHz Turbo Boost), 14 cores / 14 thread, 18MB Cache, TDP: 28W
Memory
Supports Dual Channel DDR5
Two 262 Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor and memory module)
Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module.
Display
16” FHD+ (1920x1200) Wide View Angle, Matte Finished
Graphics
Processor
Intel ARC Graphics (based on system with dual DDR5 and total memory capacity above 16GB)
- Intel Arc 130T GPU (Intel Core Ultra 5-225H)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX® 12 compatible
Intel Xe Graphics (based on system with single DDR5, or total memory capacity not reach 16GB)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX 12 compatible
Storage
Two M.2 2280 SSD, PCIe Gen 4x4 interface
Audio System
High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Pointing Device
Integrated Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard
Multi languages, White Color illuminated full size isolated keyboard with numeric pad
I/O Ports
1 HDMI output Port (with HDCP)
1 Thunderbolt 4 combo port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port (Type-A) (1x Powered USB port, AC/DC)
1 USB 3.2 Gen 1 Port (Type-A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader
Micro SD Push-Push Card reader
Slots
Three M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
Communication
Built-in Gigabit Ethernet LAN
Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
Power System
Embedded Polymer Smart Lithium-Ion battery pack 73WH
Full-Range AC-in 100~240V, 50~60Hz, 90W AC Adapter, DC output 19V, 4.74A
OS Support
Windows 11 (64-bit)
Certificates
Windows 11 (64-bit) Logo
HDMI Logo
Weight and Dimensions
3.86 LBs including 73WH Battery Pack
14.10" (w) x 10.18" (d) x 0.71" (h)
Other Features
Metal top and bottom case
Built-in 1.0M HD Video Camera
FlexiCharger
MIL-STD 810H
Specifications are subject to change without notice
